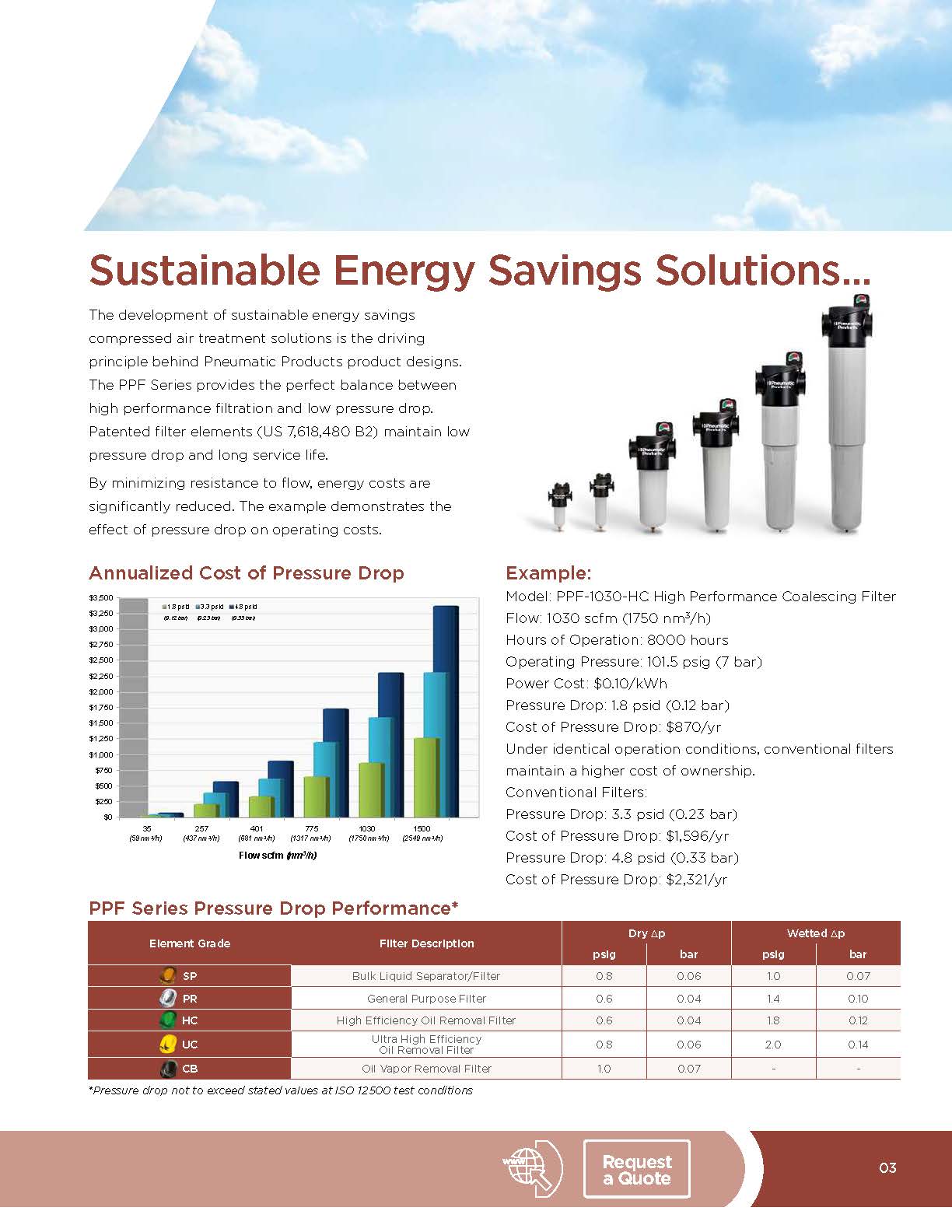

The development of sustainable energy savings compressed air treatment solutions is the driving principle behind Pneumatic Products product designs. The PPF Series provides the perfect balance between high performance filtration and low pressure drop. Patented filter elements (US 7,618,480 B2) maintain low pressure drop and long service life. By minimizing resistance to flow, energy costs are significantly reduced. The example demonstrates the effect of pressure drop on operating costs.

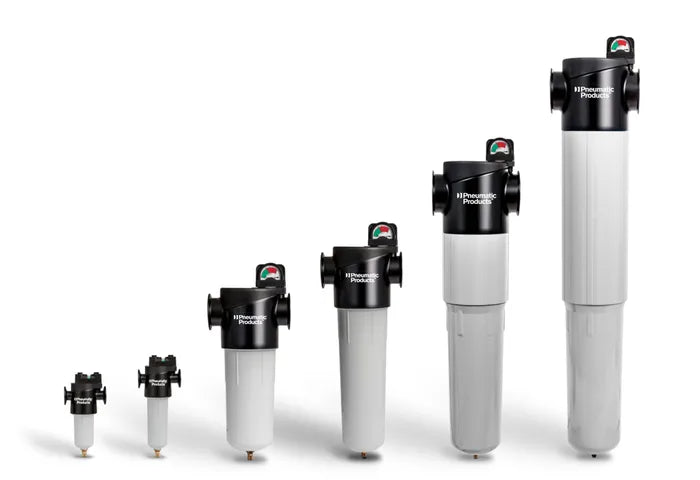

PPF Series filters feature:
20 to 1500 scfm (34 to 2459 nm3/h)

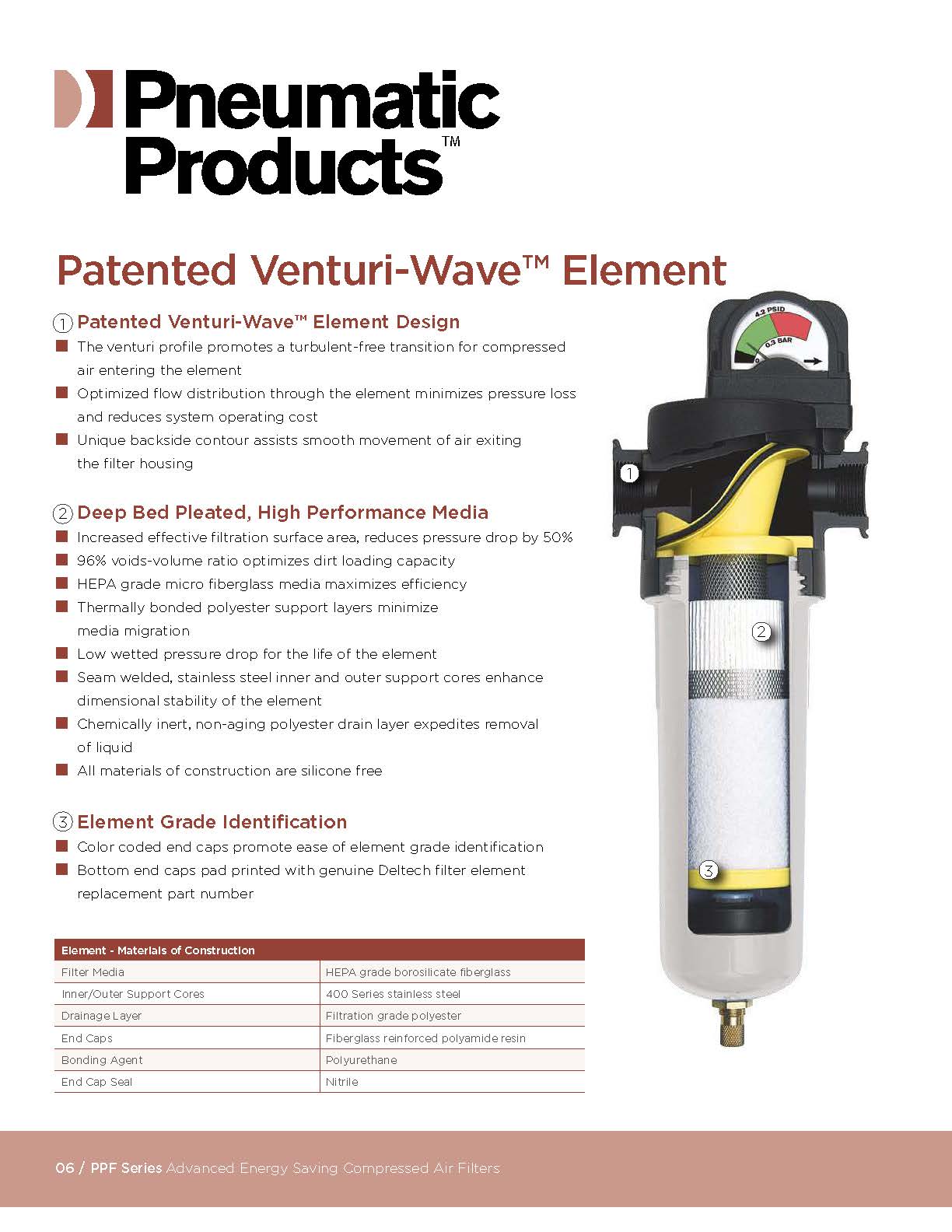

Patented Venturi-Wave element design promotes a turbulent-free transition for compressed air entering the element
Deep bed pleated, high performance media
Element grade identification with color coded end caps printed with genuine Pneumatic Products filter element replacement part number

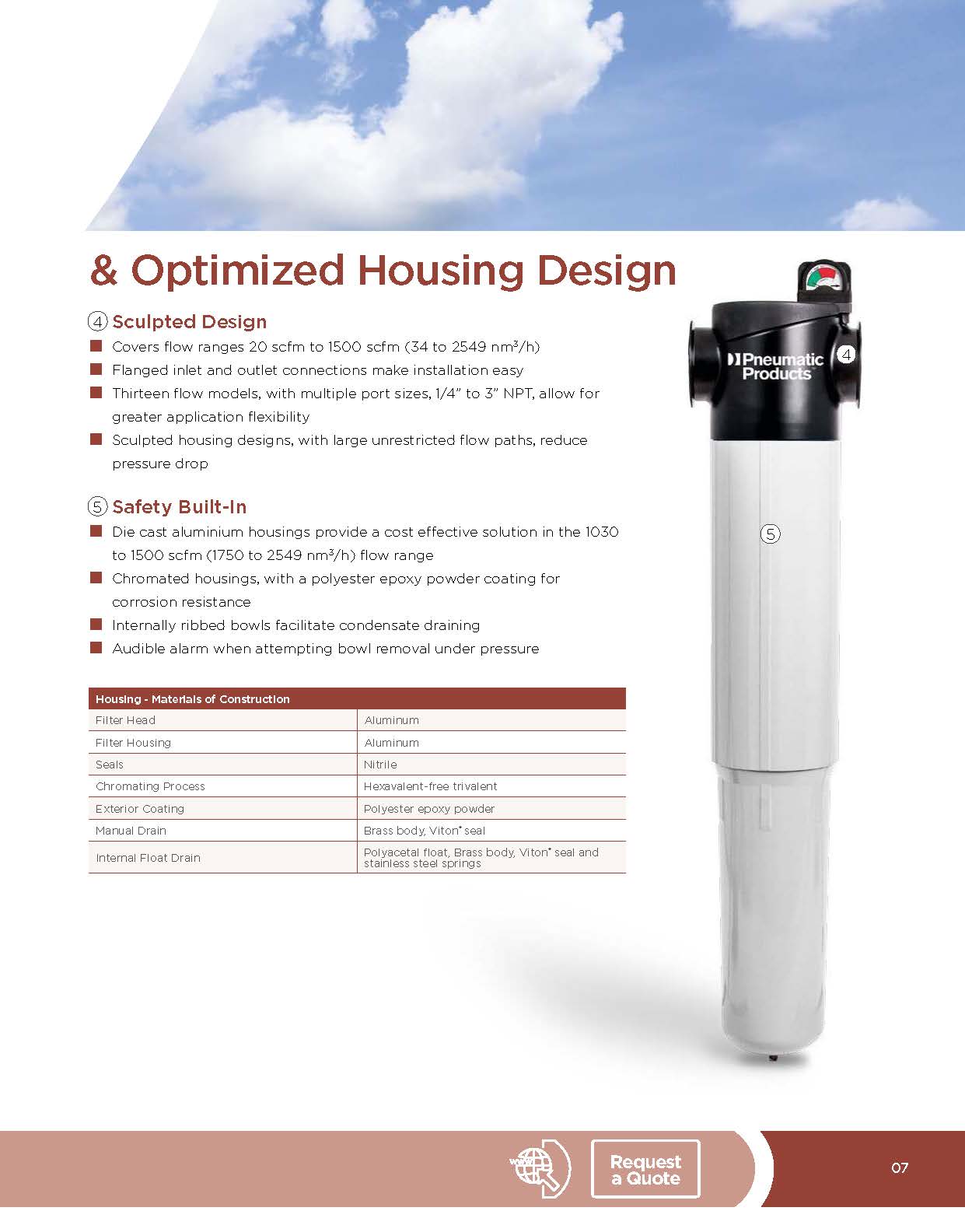

Scuplted housing design with flanged inlet and outlet connections for easy installation
Die cast aluminum, chromated housings are coated with a polyester epoxy powder coat finish for corrosion resistance
